| Color | White; Customized colors |
| Coverage angle HxV (-6 dB, 1 kHz) (°) | 166 x 140 ° |
| Coverage angle HxV (-6 dB, 4 kHz) (°) | 83 x 76 ° |
| Dimensions (H x W x D) (mm) | 250 x 60 x 140 mm |
| Frequency range (-10 dB) (Hz) | 100 – 19000 Hz |
| Operating temperature (°C) | -25 – 55 °C |
| Rated input voltage (V) | 70 V; 100 V |
| Sensitivity (1 W, 1 m, 1 kHz octave) (dB) | 90 dB |
| Storage temperature (°C) | -40 – 70 °C |
| Weight (kg) | 2.40 kg |

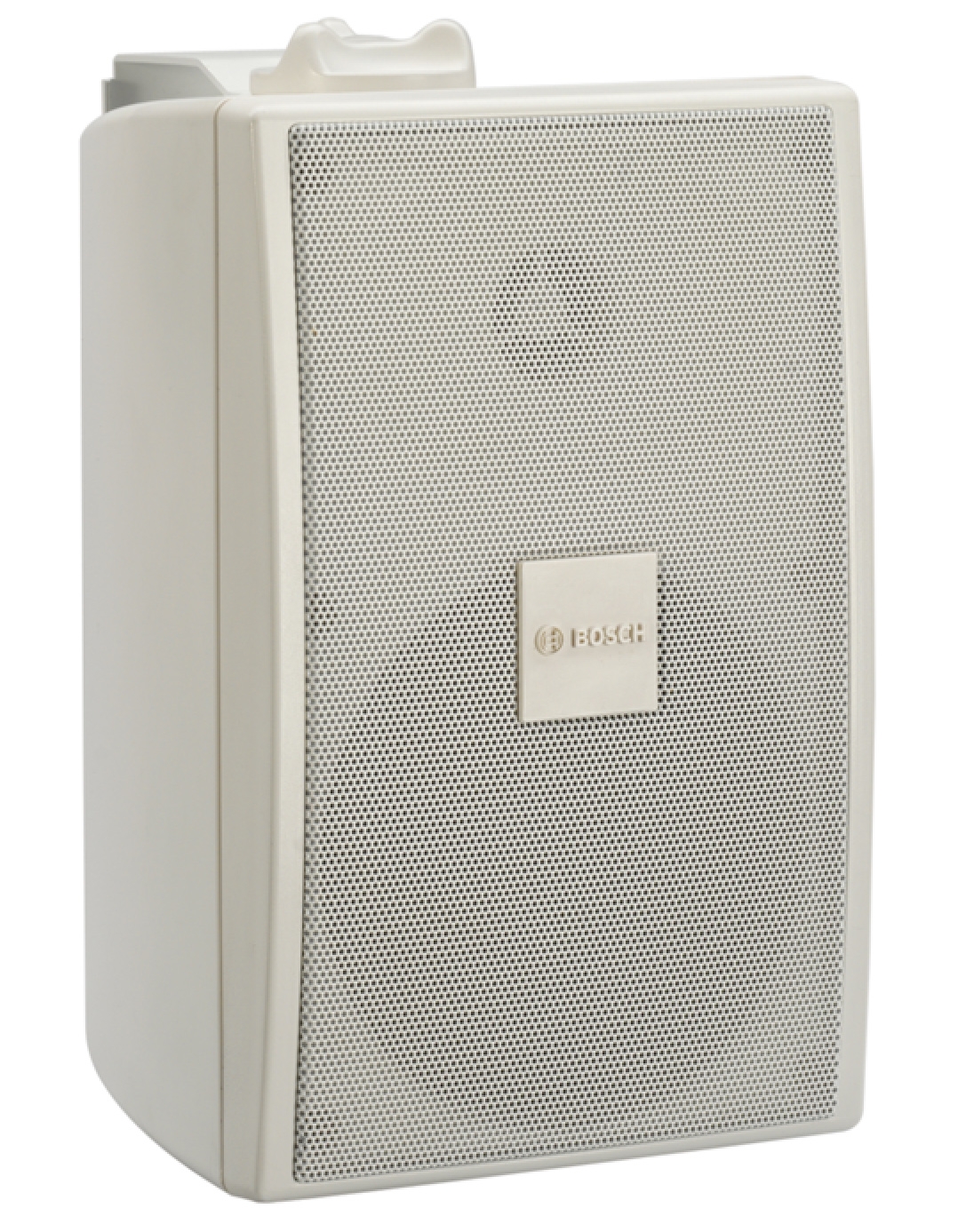

Bosch LB2-UC30-L1 Cabinet loudspeaker, 30W, white
5,700 EGP
Based on 0 reviews
Be the first to review “Bosch LB2-UC30-L1 Cabinet loudspeaker, 30W, white”
Related products
-
Pro Audio, Loudspeakers
Bosch LBC 3483/00 Horn Loudspeaker, 35W
High-efficiency Bosch LBC Horn Loudspeaker 35W offers superior sound dispersion and speech reproduction for a variety of outdoor applications. They are perfect for industries, parks, swimming pools, sports fields, and exhibition spaces.
Key Features
- High efficiency driver
- Excellent speech reproduction
- Provision for inside mounting of the optional line/loudspeaker supervision board
- Water-and dust protected to IP 65
- EN 54‑24 certified
- BS 5839‑8 and EN 60849 compliant
loudspeaker for voice alarm
The LBC 3483/00 complies with emergency requirements and is intended for usage in voice alarm systems.In the case of a fire, the built-in protection of the horn loudspeaker prevents the circuit to which it is attached from failing due to loudspeaker damage.
System integrity is preserved in this way, guaranteeing that people can still hear announcements via loudspeakers in other locations. The Horn loudspeaker boasts heat-resistant, high-temperature wire, a ceramic terminal block, and a thermal fuse.
We offer all Bosch LBC Horn Loudspeaker parts.
Functions
Self-extinguishing ABS is used to make the horn’s rear cover (according to class UL 94 V0). The connecting cable exits the back cover through a cable gland (PG 13.5). The back cover has a second hole installed for a loop through connection (covered as usual provided).
These integrated horns may also be installed with any combination of horn and driver because they are available as separate horn and driver. Refer to the order details for the type numbers.
Buy Bosch LBC Horn Loudspeaker from OmniSignals now!
Certifications and approvals
Bosch LBC Horn Loudspeaker 35W is made to meet IEC 268-5 Power Handling Capacity (PHC) regulations, which require them to be able to operate at full power for 100 hours. Bosch has furthermore created the Simulated Acoustical Feedback Exposure (SAFE) test to show that, for brief periods of time, they can tolerate two times the power that is rated for them.
This guarantees increased dependability in harsh environments, resulting in increased customer satisfaction, an extended operational life, and a far lower likelihood of failure or performance degradation.
Check out Bosch LBC Horn Loudspeaker 35W price.
SKU: #0027 -
Pro Audio, Loudspeakers
LBC3099/41 – Ceiling loudspeaker, 24W, 8″
A flush-mounting ceiling loudspeaker for situations requiring more power, including high-ceilinged rooms, is the LBC3099/41 Ceiling loudspeaker. It provides a broad frequency range and a high sound pressure level to guarantee clear conversation and high-quality music reproduction. Applications for it include retail establishments, department stores, restaurants, hotels, offices, sports arenas, and schools.
The LBC 3099/41 has a single-piece, 24 W, dual-cone loudspeaker. A 100 V matching transformer is mounted on the back of the frame. An attractive metal grille is integrated with the front, and finished in an unobtrusive white color (RAL 9010).
Ceiling loudspeaker, 24 W, integrated circular metal grille, two spring-loaded clamps for ceiling mounting, three-way screw terminal block, white RAL 9010.
Key Features
- Outstanding audio and speech reproduction
- Elevated amount of sound pressure
- Perfect for situations with high ceilings
- Ceiling-mounted flush fixtures
- Mounting clamps
- Basic power configuration
- The inconspicuous white metal grille
- Ball-proof
- Conforms to international safety and installation standards
- BS 5839-8 and EN 60849 compliant
speaker for voice alarms
Speakers intended for voice alarms are particularly made to be used in buildings where rules control how well verbal evacuation alert systems operate. According to emergency standards, the LBC3099/41 Ceiling loudspeaker is compatible and meant to be used in voice alarm systems.
Check out LBC Ceiling loudspeaker Price.
Terminal Block
The device includes a three-way terminal block that may be wired loop-through since it contains screw connectors for all connections, including earth. The corresponding transformer has three primary taps that allow the user to pick nominal full-power, half-power, or quarter-power radiation (in steps of three dB).
Take a look on our LBC Ceiling loudspeaker 24W.
LBC 3082/00 Fire Dome
LBC3099/41 Ceiling loudspeaker with LBC 3082/00 fire dome assembly. The unit has two built-in spring-loaded locking clamps to secure it into a hole in suspended ceilings and wallboards from 9 to 25 mm (0.35 to 1.0 in) thick. A circular template for marking a 210 mm (8.3 in) diameter hole is included with the loudspeaker.
SKU: #0013 -
Pro Audio, Loudspeakers
LC2-PC30G6-8 – Ceiling loudspeaker, 30W, 8″ Pair
The LC2-PC30G6-8 Ceiling loudspeaker is a 8‑inch two‑way Premium‑sound Ceiling Loudspeaker which provides; wide dispersion, high efficiency, high maximum output, ease‑of‑installation, and wide‑range reproduction of music and voice.
Key Features
- 8‑inch coaxial two‑way
- Waveguide coupled Ti tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- BS 5839‑8 and EN 60849 compliant
It consists of a baffle assembly, grille, back‑can enclosure, 8‑inch coax two‑way loudspeaker and internal output‑power matching transformer. The loudspeaker features a waveguide coupled with a titanium coated dome tweeter.
The rear enclosure provides an optimum internal volume for extended low frequency performance. The loudspeaker utilizes a second order crossover network at 3.3 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels.
The LC2-PC30G6-8 Ceiling loudspeaker can be installed optionally with the LC2‑PC60G6‑10 ceiling subwoofer to enhance the low frequency reproduction down to 45 Hz.
Mounting
The LC2-PC30G6-8 Ceiling loudspeaker is secured in ceilings using four integral toggle anchors, and has been designed to work together in a wide range of different ceiling constructions.
A tile bridge / C‑ring is included for safe suspension in a drop ceiling that uses mineral wool, or other fiber‑based ceiling tiles from 4 to 25 mm (0.16 to 1.0 in.) thick. A circular template for marking a 272 mm (10.75 in.) diameter hole is included with the loudspeaker.
Check out LC2 Ceiling loudspeaker Price.
Power setting
The LC2 Ceiling loudspeaker Pair has a three‑way emergency compliant ceramic terminal block with screw connections (including earth) suitable for loop‑through wiring.
Four 100 V, and five 70 V, primary taps are provided on the matching transformer to allow selection of nominal full‑power, half‑power, quarter‑power, eighth‑power radiation (in 3 dB steps) and eight ohm. Selection is done via a convenient switch on the front baffle.
Buy LC2 Ceiling loudspeaker, 30W from OmniSignals now!
SKU: #0015 -
Pro Audio, Power Amplifiers
Bosch PLE-2MA120-EU – Priority mixer amplifier, 2-zone, 120W
Introducing the Bosch PLE-2MA120 Plena Mixer Amplifier, a sophisticated solution designed for versatile 2-zone operations and high-output power needs in background audio PA and commercial audio installations. With its robust 120 watts of power, this amplifier is engineered to deliver crisp, clear sound across various settings, including retail stores, commercial offices, and halls.
Key Features:
- Versatile Zone Operations: Equipped with two zones, each featuring Euro-style pluggable screw terminal connectors for 70V, 25V, and 4 Ohms taps, allowing for flexible speaker configurations.
- Comprehensive Input Options: The PLE-2MA120 offers six microphone/line inputs alongside three music source inputs, ensuring compatibility with a wide range of audio sources. It also includes a 100V telephone and a call station input with priority & VOX for seamless integration into existing PA systems.
- Enhanced Voice Clarity: With a dedicated announcement channel, voice-activated emergency override, and built-in 2-tone chime (expandable to 7 more with an optional call station), this amplifier ensures clear communication in critical situations.
- Superior Sound Quality: The frequency response ranges from 50 Hz to 20 kHz, providing a broad spectrum for audio playback. It also boasts a dynamic range of 100 dB and low distortion levels (< 1% at rated power), ensuring high-quality sound reproduction.
- Advanced Signal Processing: Includes separate tone controls for microphones and music sources, bass and treble adjustability of ±12 dB, and a high-pass filter set at 315 Hz, offering precise sound customization.
- Reliable Power Supply: The unit can operate on AC (115 to 230 VAC) and DC (24 VDC) power sources, with a built-in 24V charger for backup power, ensuring uninterrupted operation.
- User-Friendly Interface: Designed for ease of use, the PLE-2MA120 features straightforward controls, making it accessible for all skill levels.
- Durable and Practical Design: With dimensions of 16.9 x 3.9 x 10.6 inches and weighing 23.1 lb, this amplifier is built for durability without compromising on practicality. The unit’s design ensures it integrates seamlessly into a variety of settings.
The Bosch PLE-2MA120 Plena Mixer Amplifier stands out as a cost-effective, ideal solution for enhancing audio systems in commercial environments. Its powerful performance, flexible connectivity, and user-friendly features make it a top choice for professionals seeking reliability and quality in audio installations.
SKU: #0033 -
Pro Audio, Loudspeakers
LC1-UM24E8 – Ceiling loudspeaker, 24W, coaxial
LC1-UM24E8 ceiling loudspeaker, 24 W, integrated circular metal grille, 6-inch coax (two-way system) driver, without flush ceiling-mounting accessory, EN54-24 certified, white RAL 9010.
Key Features
- Excellent speech and music reproduction
- Easy installation with one grille size and one complete set of accessories
- Choice of different ceiling mounting methods
- Optional Pilot Tone indication
- EN 54‑24, UL2043, UL1480 certified
Modular Range
The LC1 ceiling loudspeaker coaxial range can be used for a wide variety of ceiling environments. They provide excellent speech and music in indoor public address applications. The range offers a choice of five loudspeakers distinguished by input power, opening angle and sound reproduction.
The LC1-UM24E8 ceiling loudspeaker can be installed with the LC1-MFD or LC1-MFDS enclosure and are suitable for use in air-handling spaces. The loudspeaker frame includes provision for mounting the optional monitoring board PRA-EOL and DC-blocking board PM1-LISD inside the enclosure.
Buy LC1 Ceiling loudspeaker, 24W from OmniSignals now!
Functions
Voice alarm applications
Voice alarm loudspeakers are specifically designed for use in buildings where system performance for verbal evacuation announcements is governed by regulations. The LC1 Modular Ceiling Loudspeaker range is designed for use in voice alarm systems and is EN 54‑24 certified and compliant with British standard BS 5839‑8.
Protection
The LC1-UM24E8 has built-in protection to ensure that fire damage to the loudspeakers does not cause failure of the connected circuit. In this way system integrity is maintained, ensuring loudspeakers in other areas can still be used to inform people of the situation. The loudspeakers can also be used in combination with a metal fire-dome to increase protection of the cable termination.
Connections
The LC1-UM24E8 Ceiling loudspeaker has a ceramic screw-terminal connection block, thermal fuse and heat-resistant, high-temperature wiring.
Check out our LC1 Ceiling Loudspeaker Price.
SKU: #0014
