| Max. 4k Capabilities | |||
|---|---|---|---|
 |
|||
| Frame rate1 | 24, 25, 30, 50, or 60 fps | ||
| Chroma sampling1 | 4:4:4, 4:2:2, or 4:2:0 | ||
| Color bit depth1 | 8 bits per color | ||
| Signal type | HDMI 2.0 | ||
| Max. video data rate | 18.0 Gbps (6.0 Gbps per color) | ||
|
|||
| Performance/electrical | |||
| Resolution range | |||
| Premium High Speed HDMI cable — Up to 15′ (4.5 m) | Up to 4K @ 60 Hz (4096×2160), UHD @ 60 Hz (3840×2160) 8 bit color depth, max. 18.0 Gbps data rate |
||
| Voltage | 30 V | ||
| Pair impedance | 100 ohms ±10 ohms | ||
| Attenuation | At 0.3 – 0.825 GHz: ≤5 dB per 3 m At 0.825 – 2.475 GHz: ≤12 dB per 3 m At 2.475 – 4.125 GHz: ≤20 dB per 3 m At 4.125 – 5.100 GHz: ≤25 dB per 3 m |
||
| FEXT | ≥20 dB per 3 m | ||
| Skew | |||
| Intrapair | ≤112 ps per 3 m | ||
| Interpair | ≤1.78 ns per 3 m | ||
| General — physical characteristics | |||
| Connector type | 1 male type A HDMI to 1 male type A HDMI | ||
| Contacts | Gold plated | ||
| Material | Conductors: tinned copper, 28 AWG Drain wire: tinned copper, 28 AWG Shielding: fluorocopolymer tape binder, tinned copper braid Jacket: PVC |
||
| Connector dimensions | 1.40″ L* x 0.77″ W x 0.44″ thick (35.6 mm L* x 19.7 mm W x 11.1 mm thick) *Length excludes plug. |
||
 |
|||
| Cable dimensions | |||
| Cable outer diameter | 0.22″ (5.7 mm) | ||
| Bend radius | 0.80″ (20.3 mm) | ||
|
|||
| Regulatory compliance | UL VW-1, CMX, CSA FT-1 | ||
| Temperature rating | 80 °C | ||
| Product warranty | Limited Lifetime Performance | ||

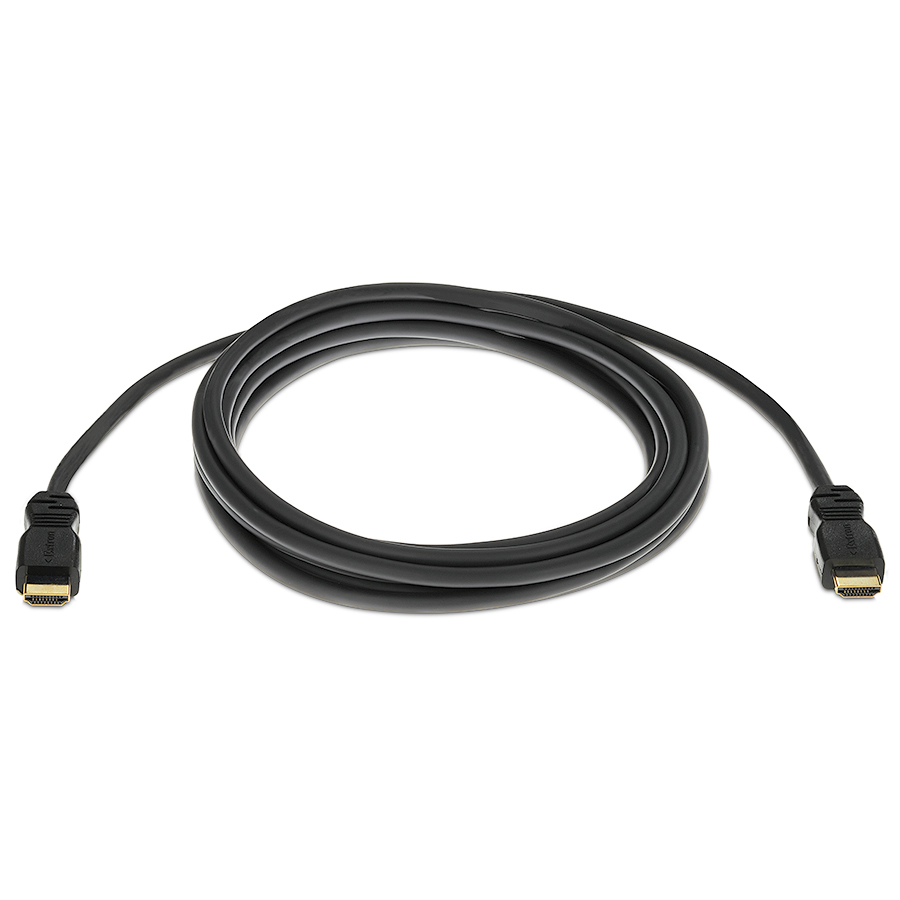

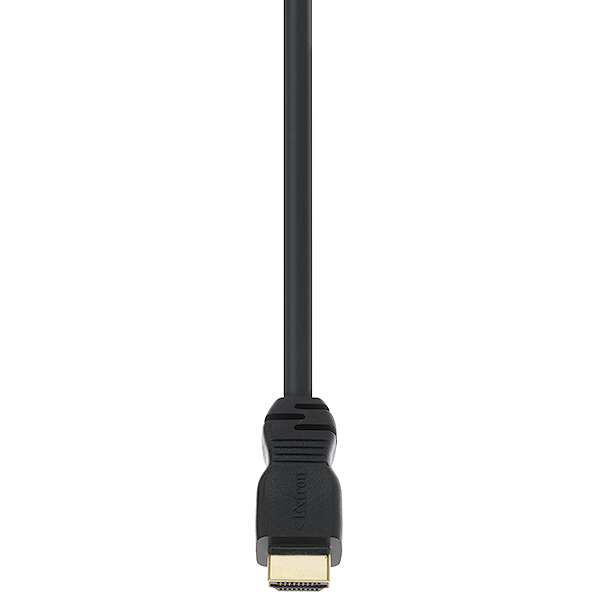

EXTRON 1.8 m Ultra Flexible Premium High Speed HDMI – HDMI Ultra/6
5,750 EGP
10 in stock
HDMI Ultra/6 – 6 (1.8 m) – Ultra Flexible Premium High Speed HDMI Cable
Based on 0 reviews
Be the first to review “EXTRON 1.8 m Ultra Flexible Premium High Speed HDMI – HDMI Ultra/6”
